Stainless Steel Glass Shower Door Hinge SHS-200-180-GTG: The Ultimate Guide

Quick answer:

The SHS-200-180-GTG is a stainless steel glass-to-glass shower door hinge made by Leader Shower Hardware. It fits 8–12mm tempered glass, supports up to 120 lbs with three hinges, lasts up to 100,000 cycles, and comes in four finishes—making it a durable choice for frameless showers.

Choosing the right hinge can make or break a frameless shower installation. The hardware has to hold heavy tempered glass, resist constant moisture, and still look sharp years down the line. That's a tall order for a small piece of metal.

The SHS-200-180-GTG stainless steel glass shower door hinge from Leader Shower Hardware checks all those boxes. Built for glass-to-glass mounting with a smooth built-in spring action, it's engineered for both contractors who install showers daily and homeowners planning a bathroom upgrade.

This guide breaks down everything you need to know—from technical specs and finish options to a step-by-step install walkthrough and cleaning tips that keep your hinges looking new.

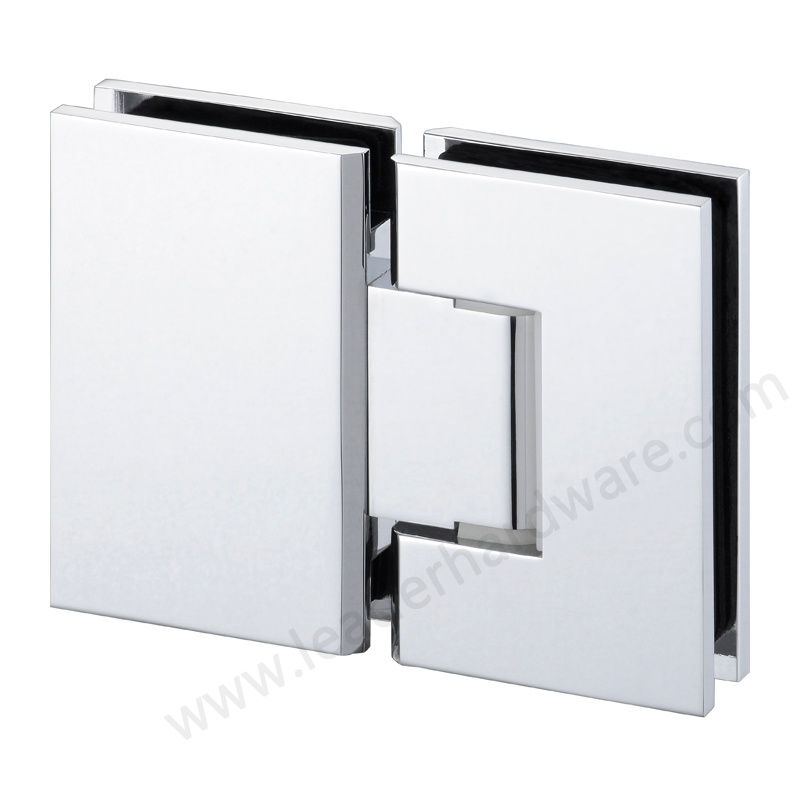

What Is the SHS-200-180-GTG Glass Shower Door Hinge?

The SHS-200-180-GTG is a glass-to-glass shower door hinge manufactured by Leader Shower Hardware (Jiangmen Leader Hardware Technology Co., Ltd.), an ISO 9001-certified factory. Unlike wall-mounted hinges, this model connects two panels of glass directly—one fixed and one swinging—creating the clean, seamless look that defines modern frameless showers.

At its core is a built-in spring structure that lets the door swing open and return to a closed position smoothly. The hinge is made entirely from stainless steel, so it stands up to the constant humidity and water exposure of a bathroom environment.

Key Features and Specifications

Here's a quick rundown of what the SHS-200-180-GTG offers:

• Mounting type: Glass-to-glass

• Material: Stainless steel

• Spring mechanism: Built-in spring structure for smooth open-and-close action

• Glass compatibility: Fits 8–12mm tempered glass

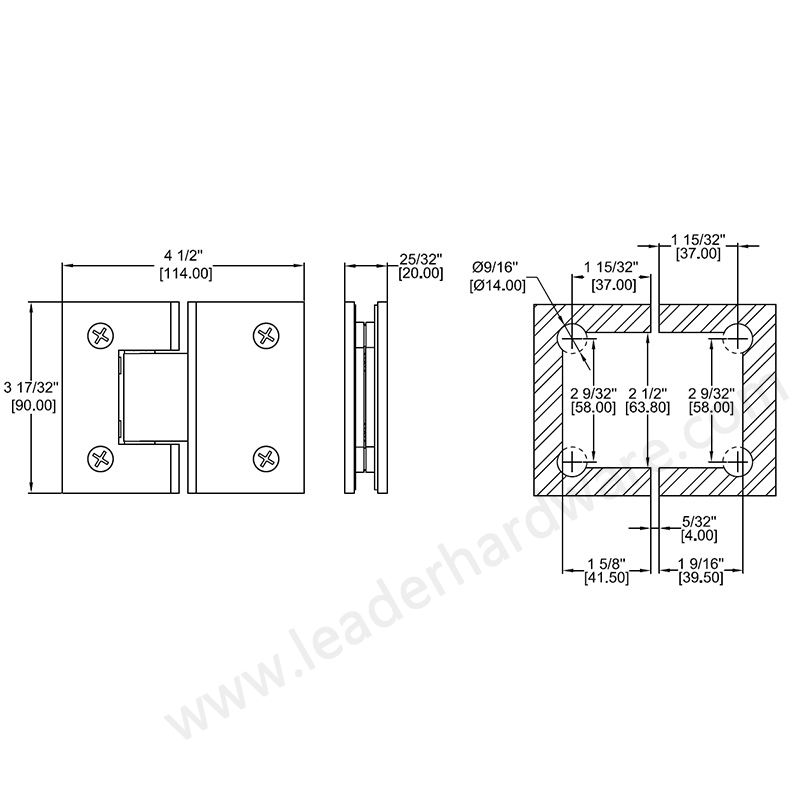

• Dimensions: 114 × 90mm (3-17/32" × 4-1/2")

• Load capacity: 80 lbs with 2 hinges, 120 lbs with 3 hinges

• Durability: Tested up to 100,000 open-close cycles

• Corrosion resistance: Up to 240 hours NSS (neutral salt spray) rating

• Adjustment options: Optional 5-degree preset or 0-position adjustable

• Gasket options: Clear PVC, Non-Asbestos Fabric, Black Rubber, and Gasket with Fin

• Included: Complete mounting accessories

That 100,000-cycle rating matters more than it sounds. If a shower door opens and closes ten times a day, the hinge is built to last over 27 years of daily use.

Available Finishes

The SHS-200-180-GTG comes in four finishes, so it can match nearly any bathroom style:

• Polished Chrome – bright, reflective, and timeless

• Brushed Nickel – warm, subtle, and great at hiding fingerprints

• Matte Black – bold and modern, a favorite in contemporary designs

• Gun Metal – dark and industrial with a sophisticated edge

Pairing the hinge finish with your other shower hardware—handles, towel bars, and faucets—pulls the whole bathroom together.

Why Choose a Glass-to-Glass Hinge for Your Frameless Shower?

Glass-to-glass hinges like the SHS-200-180-GTG give you a few clear advantages over framed or wall-mounted alternatives.

First, there's the look. Without bulky metal frames, the glass takes center stage, making the space feel larger and brighter. Second, fewer frames mean fewer crevices where soap scum and mildew collect, so cleaning is easier. Third, stainless steel construction with a 240-hour NSS corrosion rating means the hardware won't rust or pit in a wet environment.

Choose a glass-to-glass hinge if a sleek, minimalist look and low-maintenance hardware matter more to you than the lower upfront cost of a framed enclosure. For high-traffic showers, the 120 lbs three-hinge load capacity also offers peace of mind for heavier glass panels.

How to Install Frameless Shower Door Hinges (Step-by-Step Guide)

Installing a frameless shower door hinge takes patience and the right tools, but it's well within reach for a confident DIYer. Here's how to install the SHS-200-180-GTG step by step.

What you'll need: the hinge with included mounting accessories, a screwdriver or hex key, a level, a clean cloth, and your chosen gasket.

Step 1: Prep and measure

Make sure the fixed glass panel is already securely installed and level. Mark the hinge positions on both the fixed panel and the door panel, double-checking your measurements against the 114 × 90mm hinge footprint.

Step 2: Fit the gaskets

Place the correct gasket (Clear PVC, Non-Asbestos Fabric, Black Rubber, or Gasket with Fin) between the hinge and the glass. Gaskets protect the glass and create a snug, vibration-free fit.

Step 3: Attach the hinge to the fixed panel

Position the hinge on the fixed glass and hand-tighten the screws. Don't fully tighten yet—you'll want room to adjust.

Step 4: Mount the door panel

Connect the swinging side of the hinge to the door panel. With a helper holding the glass, align everything carefully.

Step 5: Level and adjust

Use your level to confirm the door hangs straight. If you opted for the 0-position adjustable version, fine-tune the closing position now. The optional 5-degree preset can help the door sit slightly open or closed at rest.

Step 6: Final tightening

Once everything is square and level, tighten all screws firmly—but avoid overtightening, which can stress the tempered glass. Test the door's swing several times to confirm smooth action.

If you're working with heavy glass or feel unsure at any point, hiring a professional installer is the safer call. Tempered glass is unforgiving once cracked.

How to Clean Shower Door Hinges and Keep Them Looking New

Even the best stainless steel hinges need occasional care to stay spotless. Hard water, soap residue, and humidity are the main culprits behind buildup and dull finishes. Here's how to clean shower door hinges the right way.

Weekly wipe-down: After showering, dry the hinges with a soft microfiber cloth. Removing standing water prevents water spots and mineral deposits.

Routine cleaning: Mix a little mild dish soap with warm water. Use a soft cloth or sponge to gently clean the hinge surface, then rinse and dry.

Tackling hard-water stains: For stubborn mineral buildup, mix equal parts white vinegar and water. Dampen a cloth, lay it over the affected area for a few minutes, then wipe clean and rinse thoroughly.

Reaching tight spots: An old soft-bristle toothbrush works well for cleaning around screws and crevices.

A few things to avoid: skip abrasive scrubbers, steel wool, and harsh chemical cleaners like bleach. These can scratch the finish—especially on Matte Black and Gun Metal hinges—and damage the protective coating. With this simple routine, your hinges will keep their shine for years.

Applications: Where Can the SHS-200-180-GTG Be Used?

This hinge is versatile enough for a range of glass enclosure projects, including:

• Residential frameless shower enclosures

• Hotel and hospitality bathroom installations

• Glass partition doors in commercial spaces

• Spa and gym shower facilities

Anywhere two glass panels meet and need a reliable, good-looking connection, the SHS-200-180-GTG fits the job.

Quality Assurance and Certifications

Leader Shower Hardware manufactures the SHS-200-180-GTG in an ISO 9001-certified facility, which means consistent quality control across every batch. The hinge's 100,000-cycle durability test and 240-hour NSS anti-corrosion rating aren't marketing fluff—they're measurable benchmarks that confirm the hardware can handle real-world bathroom conditions for the long haul.

For contractors, that reliability translates to fewer callbacks. For homeowners, it means hardware you can install once and forget about.

Frequently Asked Questions

What glass thickness does the SHS-200-180-GTG fit?

The hinge fits 8–12mm tempered glass, covering the most common thicknesses used in residential and commercial frameless shower enclosures.

How much weight can the SHS-200-180-GTG support?

Two hinges support up to 80 lbs, and three hinges support up to 120 lbs. For heavier glass doors, use three hinges to stay within the safe load range.

Can I install a frameless shower door hinge myself?

Yes, a confident DIYer with basic tools can install the SHS-200-180-GTG using the included mounting accessories. That said, heavy tempered glass is fragile and unforgiving, so hiring a professional is recommended if you're unsure.

How do I keep stainless steel shower door hinges from rusting?

The SHS-200-180-GTG is made from stainless steel with a 240-hour NSS corrosion rating, so it resists rust well. Drying the hinges after each use and cleaning them regularly keeps corrosion and water spots at bay.

What finishes are available for the SHS-200-180-GTG?

The hinge comes in four finishes: Polished Chrome, Brushed Nickel, Matte Black, and Gun Metal—enough variety to match most bathroom hardware.

How long will the SHS-200-180-GTG last?

It's tested for up to 100,000 open-close cycles. At ten uses per day, that's more than 27 years of expected service life.

Ready to Upgrade Your Frameless Shower?

The SHS-200-180-GTG stainless steel glass shower door hinge brings together durability, smooth operation, and a clean modern look at a level both contractors and homeowners can trust. With four finishes, multiple gasket options, and ISO 9001-backed quality, it's built to perform in any bathroom.

Explore the full specs and order the SHS-200-180-GTG directly from Leader Hardware at leaderhardware.com, or reach out to the team for bulk pricing and project quotes.
