Glass Clamp Types and Applications: Complete Guide for Commercial Projects

A glass clamp is a hardware fitting that secures a glass panel to a structural surface—such as a wall, post, or adjacent glass panel—without requiring a full frame. The six primary glass clamp types are: D-shaped, square, circular, Z-shaped, glass-to-glass, and adjustable. Each type suits specific glass thicknesses (typically 6–12 mm, with heavy-duty models accommodating 15 mm and above) and distinct architectural contexts.

Specifying the wrong clamp type is one of the most common—and costly—mistakes in commercial glazing projects. A D-shaped clamp fitted where a glass-to-glass clamp is required means structural rework, installation delays, and budget overruns. This guide maps each glass clamp type to its correct application, compatible glass thicknesses, and commercial use cases, giving procurement teams and installers the clarity they need before placing an order.

What Is a Glass Clamp, and How Does It Work?

A glass clamp secures tempered or laminated glass panels by clamping the glass edge or face between two machined jaws, held in place by bolts or set screws. The clamp transfers lateral and vertical loads from the glass into a supporting structure—a post, wall, or adjacent panel—without drilling through the glass itself.

Most glass clamps include a rubber or nylon protective liner between the metal jaw and the glass surface to prevent stress concentrations that could cause breakage. Material choices typically include marine-grade stainless steel (316 or 304) and brass, both of which resist corrosion in wet or high-humidity environments such as shower enclosures and pool areas.

Types of Glass Clamps: A Complete Overview

D-Shaped Glass Clamp

The D-shaped glass clamp is the most widely specified clamp in commercial and residential projects. Its profile features a flat back face that mounts flush against a wall or post, and a curved arc-shaped front that cradles the glass—together forming the letter "D." This geometry distributes clamping force evenly across the glass face, reducing the risk of localized stress fractures.

Compatible glass thickness: 6–12 mm standard; heavy-duty variants support up to 15 mm.

Typical applications:

• Frameless glass doors (storefronts, office entrances)

• Glass railings and balustrades on terraces and mezzanines

• Stair railings in residential and hospitality projects

• Exterior storefronts requiring a clean, hardware-minimal aesthetic

The D-shaped clamp is the preferred default for most frameless railing applications because it provides a strong, low-profile connection point that keeps the visual focus on the glass rather than the hardware.

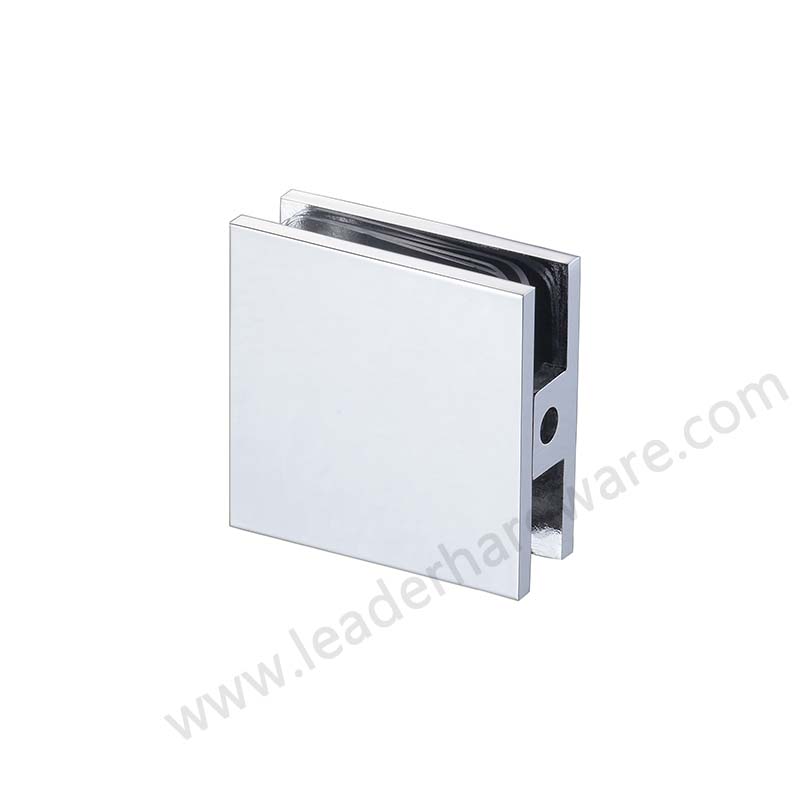

Square-Shaped Glass Clamp

The square glass clamp features a geometric, rectilinear body with sharp 90-degree edges. Where the D-shaped clamp emphasizes softness and minimalism, the square clamp introduces a deliberate industrial or architectural accent.

Compatible glass thickness: 8–12 mm standard.

Typical applications:

• Open-plan office partitions with an industrial or loft aesthetic

• Minimalist interior dividers in co-working spaces and hospitality lobbies

• Modern residential interiors where hardware is treated as a visible design element

The square clamp is better suited for interior environments where the hardware itself contributes to the visual language of the space, while the D-shaped clamp works best when the hardware should recede visually.

Circular (Round) Glass Clamp

The circular glass clamp has a fully rounded body that creates a softer, more fluid visual line. The absence of corners makes it particularly compatible with curved architectural elements and retail environments where approachability and elegance take precedence over industrial edge.

Compatible glass thickness: 6–12 mm.

Typical applications:

• Curved glass railings in luxury retail stores and hotel lobbies

• Boutique interiors with a soft, contemporary aesthetic

• Display cases and freestanding glass partitions in commercial showrooms

Z-Shaped Glass Clamp

The Z-shaped glass clamp is engineered for inclined or angled glass connections. Its offset geometry—resembling the letter "Z" in cross-section—allows it to accommodate glass panels that meet a structural surface at an oblique angle, rather than the standard 90 degrees.

Compatible glass thickness: 8–12 mm; confirm with manufacturer for steeper inclines.

Typical applications:

• Staircase glass railings where the balustrade follows the pitch of the stair

• Sloped glazing systems and angled glass facades

• Installations on uneven or non-perpendicular surfaces

When a glass panel must transition across a change in level—such as a stair flight—the Z-shaped clamp is typically the correct specification, while a standard D-shaped or square clamp would create misalignment and uneven clamping pressure.

Glass-to-Glass Clamp

The glass-to-glass clamp connects two adjacent glass panels directly to each other, eliminating the need for an intermediate support post or wall anchor. This creates a fully transparent corner or in-line joint with minimal visible hardware—the hardware category that most directly enables truly frameless glass structures.

Compatible glass thickness: 8–12 mm per panel (both panels must match).

Typical applications:

• Frameless shower enclosures (90-degree and in-line configurations)

• Open-plan office partitions requiring uninterrupted sightlines

• Glass-walled conference rooms and privacy screens

• Retail display environments where transparency is critical

Glass-to-glass clamps are appropriate when structural posts would interrupt the sightline or visual continuity of the installation. They require that both glass panels are correctly tempered and edge-finished, as the clamp transfers load between the two panels.

Leader Hardware's brass glass clamp range—including models such as the GCB-202, designed specifically for 90-degree wall-to-glass applications—demonstrates how clamp geometry directly determines where a fitting can be safely specified.

Adjustable Glass Clamp

The adjustable glass clamp incorporates mechanical adjustment—typically through slotted mounting holes or threaded adjustment screws—that allows fine positional correction during and after installation. This is particularly valuable on construction sites where structural tolerances are imperfect or where glass panels must be aligned to existing architectural features.

Compatible glass thickness: 8–12 mm; heavy-duty adjustable models support up to 15 mm.

Typical applications:

• Large-scale commercial railing installations where panel alignment must be set on-site

• Retrofit projects where existing anchor points have positional variance

• Any installation environment where achieving plumb and level requires field adjustment

The adjustable clamp trades a slightly more complex appearance for significantly reduced installation time and fewer remakes—a consideration that often justifies its higher unit cost on large commercial projects.

Glass Thickness Compatibility: Quick Reference

Matching the clamp to the correct glass thickness is a structural—not aesthetic—decision. Using a clamp rated for 8–10 mm glass on a 12 mm panel creates inadequate clamping force and introduces movement under load.

Always verify the manufacturer's rated thickness range before specifying. Glass panels used in railing applications should be heat-soaked tempered or laminated safety glass per applicable local building codes.

Choosing the Right Glass Clamp for Commercial Projects

Selecting the correct glass clamp type requires evaluating four criteria simultaneously:

1. Structural connection point – Is the glass connecting to a wall, a post, or another glass panel? Wall and post connections use standard clamps; panel-to-panel connections require glass-to-glass clamps.

2. Glass panel angle – Is the glass vertical, or does it follow a sloped surface (such as a staircase)? Angled installations require Z-shaped clamps.

3. Glass thickness – Confirm panel thickness and match it to the clamp's rated clamping range.

4. Aesthetic intent – Should the hardware recede (D-shaped or circular) or contribute as a visible design element (square)?

For large commercial projects, Leader Hardware offers OEM and ODM services, allowing procurement teams to specify custom finishes, dimensions, or configurations across the full glass clamp range.

Frequently Asked Questions

Q: What is the most common glass clamp type used in commercial railing projects?
The D-shaped glass clamp is the most widely specified type in commercial railing projects. Its flat-back, arc-front profile distributes clamping force evenly across the glass face, making it suitable for frameless glass railings, balustrades, and stair installations with standard 8–12 mm tempered glass panels.

Q: Can glass clamps be used with laminated glass, or only tempered glass?
Most glass clamps are compatible with both tempered and laminated safety glass, provided the glass edge is polished or beveled to the manufacturer's specifications. Laminated glass used in railing applications typically requires confirmation of panel thickness and interlayer specification with the clamp manufacturer before installation.

Q: What finishes are available for commercial glass clamps?
Common finishes include polished chrome, brushed nickel, matte black, satin brass, and oil-rubbed bronze. The appropriate finish depends on the project's design intent and environmental conditions—marine-grade stainless steel or brass-bodied clamps with a corrosion-resistant coating are recommended for exterior, poolside, or high-humidity applications.

Q: How many glass clamps are required per panel?
The number of clamps per panel depends on panel height, width, weight, and the load requirements defined by local building codes. As a general guideline, glass railing panels taller than 1,000 mm typically require a minimum of two clamps per vertical edge. Always consult a structural engineer for code-compliant specifications on safety-critical installations.

Q: Where can I source commercial-grade glass clamps in volume?
Leader Hardware, a commercial glass hardware manufacturer based in Jiangmen, China, supplies glass clamps and associated shower door hardware and commercial glass hardware to buyers across 80+ countries. Contact the Leader Hardware team via info@leaderhardware.com or WhatsApp to discuss volume pricing and OEM options.
