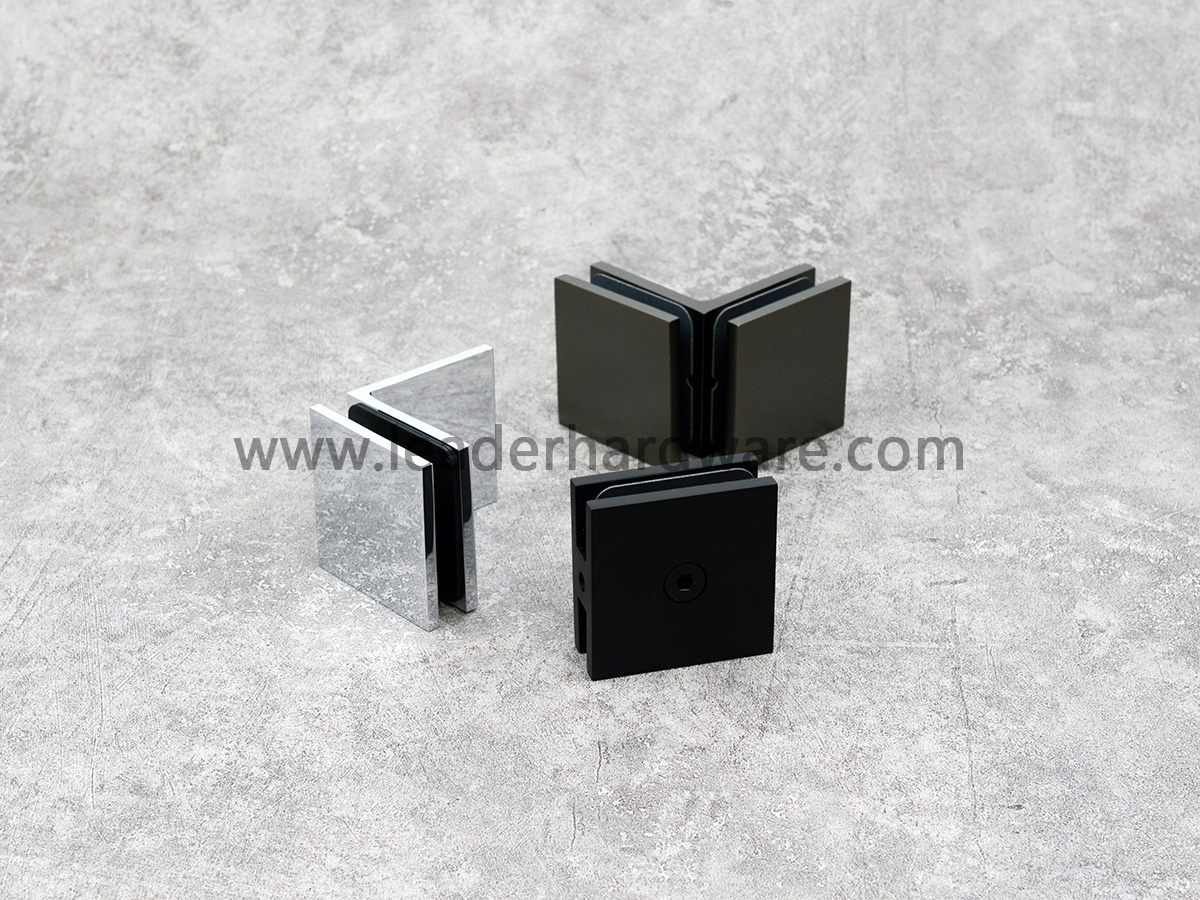

Wall to Glass Clamp: Applications, Benefits, and Selection Tips

A wall to glass clamp is a hardware fitting that anchors a glass panel directly to a wall surface, eliminating the need for a traditional frame or drilling through the glass itself. These clamps are widely used in shower enclosures, balustrades, partition walls, and commercial glazing systems where a clean, frameless aesthetic is the goal.

Whether you're specifying a glass to wall clamp for a residential bathroom renovation or sourcing a shower door wall clamp for a large commercial project, understanding the types, applications, and selection criteria will help you make the right choice.

What Is a Wall to Glass Clamp?

A wall to glass clamp is a structural hardware component that connects a glass panel to a wall or post without penetrating the glass. It works by sandwiching the glass edge between two clamping jaws — typically padded with EPDM rubber or nylon — that are then fastened to the wall with mechanical anchors.

Key characteristics:

• Accepts glass thicknesses typically ranging from 8mm to 12mm

• Available in 90-degree and adjustable-angle configurations

• Manufactured in stainless steel, zinc alloy, or brass with a range of surface finishes

• Provides both structural support and a polished, frameless appearance

Where Are Wall to Glass Clamps Used?

Wall to glass clamps are versatile fittings suited to a broad range of residential and commercial applications.

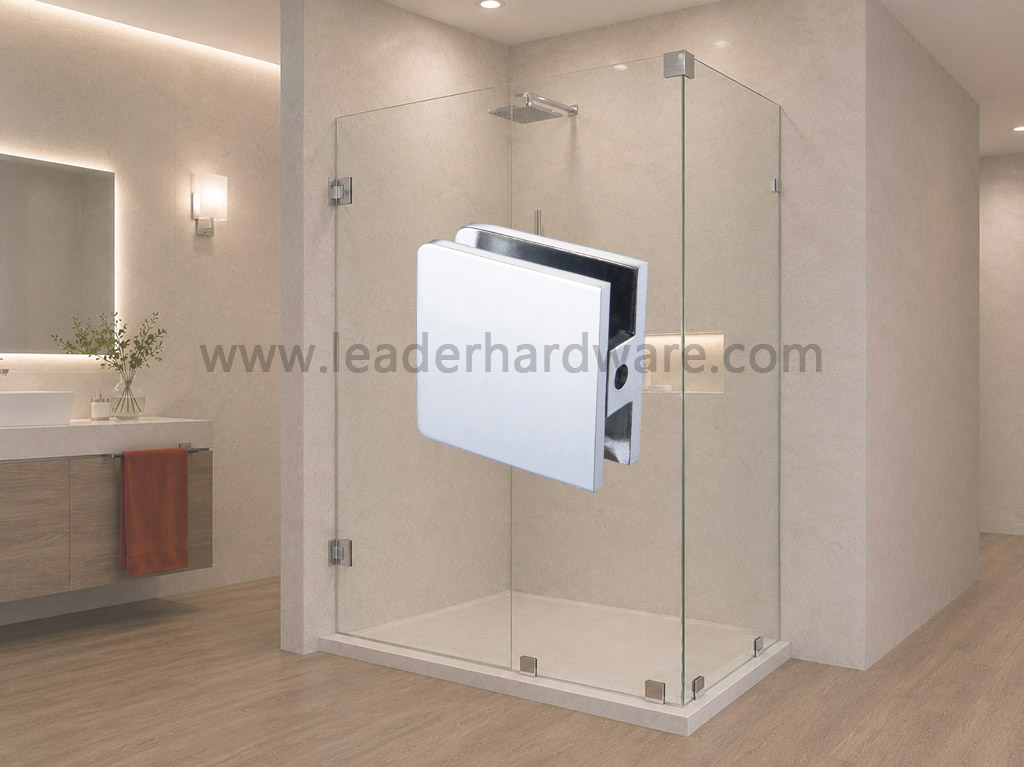

Shower Enclosures

The most common application for a shower door wall clamp is frameless and semi-frameless shower enclosures. A glass to wall clamp secures the fixed glass panel to the tiled or stone wall at the entry point of the shower, providing stability without bulky framing. This is where 90-degree wall-to-glass clamps are especially prevalent — they create a precise, right-angle connection between the wall and the glass panel for a neat, watertight installation.

Glass Balustrades and Handrail Systems

Wall to glass clamps are frequently used in staircase balustrades, mezzanine barriers, and outdoor decking railings. Here, the clamp must withstand lateral load forces, making material grade and fixing depth critical selection factors.

Interior Glass Partitions

Open-plan offices, hotel lobbies, and retail environments use glass partitions to divide space without blocking light. Wall to glass clamps provide the structural connection between the partition and the surrounding walls or columns, maintaining a minimalist look.

Pool Fencing

Frameless glass pool fencing relies on wall-mounted or post-mounted clamps to hold toughened safety glass panels in compliance with local fencing regulations. In this context, marine-grade stainless steel clamps are strongly recommended due to constant exposure to water and chemicals.

Key Benefits of Using a Wall to Glass Clamp

1. Frameless Aesthetic
Wall to glass clamps let the glass do the visual work. By eliminating bulky aluminum or steel frames, these fittings deliver the open, contemporary look preferred in luxury bathrooms, modern offices, and high-end residential builds.

2. Structural Integrity Without Glass Penetration
Unlike patch fittings or bolted connections, wall to glass clamps hold the glass panel firmly through clamping pressure alone. This preserves the structural integrity of the glass and reduces the risk of stress cracking over time.

3. Ease of Installation and Adjustment
Most wall to glass clamps are designed for straightforward installation using standard masonry anchors. Many models include adjustable jaw openings to accommodate minor variations in glass thickness or wall alignment, reducing on-site rework.

4. Material Versatility
Available in multiple finishes — including brushed stainless steel, matte black, chrome, brushed nickel, and gold — wall to glass clamps can be matched to other hardware in the space for a cohesive design outcome.

5. Low Maintenance
High-quality clamps manufactured from 304 or 316 stainless steel resist corrosion, tarnishing, and discoloration over time, making them suitable for wet environments such as shower enclosures and pool areas.

How to Choose the Right Wall to Glass Clamp

Selecting the correct glass to wall clamp requires evaluating several technical and design factors before specifying or ordering.

1. Glass Thickness Compatibility

Confirm the thickness of the glass panels being used. Most residential shower installations use 8mm, 10mm, or 12mm toughened safety glass. Ensure the clamp's jaw opening range covers the specified glass thickness with sufficient clamping margin.

2. Angle Configuration

• 90-degree wall-to-glass clamps are the standard choice for shower enclosures where the glass meets the wall at a right angle. These provide a rigid, precise connection and are available in both fixed and adjustable variants.

• Adjustable-angle clamps suit applications such as balustrades or angled partitions where the glass does not meet the wall at exactly 90 degrees.

3. Load Requirements

For balustrade and pool fence applications, the clamp must meet the load-bearing requirements specified by local building codes. Always verify the clamp's rated holding capacity against the anticipated lateral loads.

4. Material and Finish Grade

• 304 stainless steel is appropriate for most interior applications, including shower enclosures.

• 316 stainless steel (marine grade) is recommended for outdoor, coastal, or pool environments where exposure to saltwater or pool chemicals is ongoing.

• Match the clamp finish to other hardware in the project — handles, hinges, and towel bars — for a unified appearance.

5. Wall Substrate

The fixing method for the clamp must suit the wall substrate. Tiled walls, concrete, timber framing, and steel posts all require different anchor types. Confirm the appropriate anchor specification with a structural engineer where load-bearing applications are involved.

6. Quantity and Spacing

As a general guide, shower door wall clamps are positioned at the top and bottom of a fixed glass panel, with an additional mid-point clamp on taller panels. For balustrades, clamp spacing is typically governed by local building regulations.

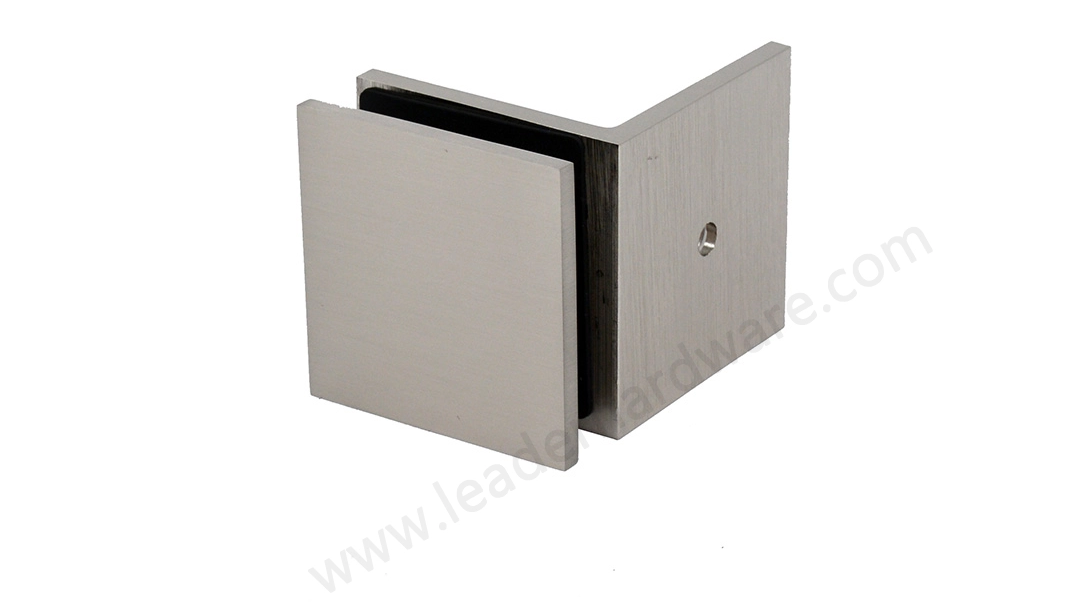

90-Degree Wall-to-Glass Clamps: A Closer Look

The 90-degree wall-to-glass clamp is the most commonly specified fitting for shower enclosures and interior glass partitions. It creates a flush, right-angle junction between the glass panel and the wall surface, producing the clean line that defines frameless shower design.

Typical specifications for 90-degree wall-to-glass clamps include:

• Glass thickness range: 8mm–12mm

• Body material: 304 or 316 stainless steel, zinc alloy

• Fixing method: Concealed bolt to wall, with exposed decorative cover plate

• Available finishes: Brushed stainless, chrome, brushed nickel, matte black, PVD gold

• Optional rubber gasket or EPDM pad to protect glass edges

Leader Hardware's Shower Door Clamp and Bracket range includes 90-degree wall-to-glass configurations designed for frameless and semi-frameless shower enclosures. All products are manufactured to international quality standards across three production facilities in Jiangmen, Guangdong, China.

Frequently Asked Questions

Q: What is the difference between a wall to glass clamp and a glass to glass clamp?
A wall to glass clamp (also called a glass to wall clamp) fastens a glass panel to a solid wall surface. A glass to glass clamp, by contrast, connects two glass panels to each other — typically at a corner joint in a frameless shower enclosure. Both types are often used together in the same installation.

Q: Can a shower door wall clamp be used on a tiled wall?
Yes. Shower door wall clamps can be installed on tiled walls using appropriate tile anchors or by drilling through the tile into the substrate behind it. It is important to use the correct drill bit to avoid cracking the tile and to ensure the anchor reaches a solid fixing point in the wall structure.

Q: What glass thickness is compatible with most wall to glass clamps?
Most wall to glass clamps on the market accommodate glass thicknesses of 8mm, 10mm, and 12mm — the three most common sizes used in residential and commercial glazing. Always verify the specific jaw range of the chosen clamp model before ordering, as some models are optimized for a narrower thickness range.

Q: How many wall to glass clamps are needed for a shower panel?
For a standard fixed shower panel up to 2,000mm tall, a minimum of two clamps (top and bottom) is typically required. Panels taller than 2,000mm generally benefit from a third clamp positioned at the midpoint to prevent flex. Always follow the manufacturer's installation guidelines and any applicable local building codes.

Q: Is stainless steel or zinc alloy better for a shower door wall clamp?
Stainless steel — particularly 304 grade for interior use and 316 grade for outdoor or coastal environments — offers superior corrosion resistance and longevity in wet conditions. Zinc alloy clamps with high-quality surface plating can be a cost-effective alternative for interior shower applications, but stainless steel is the preferred specification for long-term durability.
