A Complete Guide to Shower Glass Clamps for 8mm, 10mm, and 12mm Glass

Shower glass clamps are hardware fittings that secure glass panels in place without the need for a traditional frame or drilling directly into the glass. Leader Hardware's clamp, bracket, and sleeve-over range is compatible with glass thicknesses of 8mm, 10mm, and 12mm, making these fittings suitable for frameless and semi-frameless shower enclosures alike.

Whether you're sourcing a glass clamp for 8mm glass, a 10mm glass clamp, or a 12mm glass clamp, the right fitting ensures both structural stability and a clean, contemporary finish.

What Are Shower Glass Clamps and How Do They Work?

Shower glass clamps are mechanical fasteners — typically made from brass or stainless steel — that grip a glass panel along its edge or face without penetrating the glass surface. The clamp is secured to a fixed structure such as a wall or post, and rubber or nylon pads inside the clamp body protect the glass from direct metal contact.

This no-drill approach preserves the integrity of tempered glass panels while providing a firm, reliable hold. Sleeve-over brackets wrap around the edge of the glass to add a decorative finish on top of the structural function.

Which Glass Thickness Do Shower Clamps Support?

Leader Hardware's clamp and bracket systems are designed to fit glass thicknesses ranging from 8mm to 12mm. Here's a quick breakdown of common applications by thickness:

• 8mm glass clamps – Suitable for lighter frameless panels and semi-frameless shower screens. An 8mm glass clamp is typically used in residential bathroom installations where a lighter glass weight is preferred.

• 10mm glass clamps – The most common choice for standard frameless shower enclosures. A 10mm glass clamp offers a balance between glass rigidity and hardware load requirements.

• 12mm glass clamps – Used in heavy-duty or larger-format frameless installations. A 12mm glass clamp is often specified for walk-in showers and high-end bathroom projects where maximum glass stability is required.

Many clamps in the Leader Hardware range are adjustable across all three thicknesses, offering flexibility for trade buyers and project managers working across varying specifications.

Types of Shower Glass Clamps Available

Wall-to-Glass Clamps

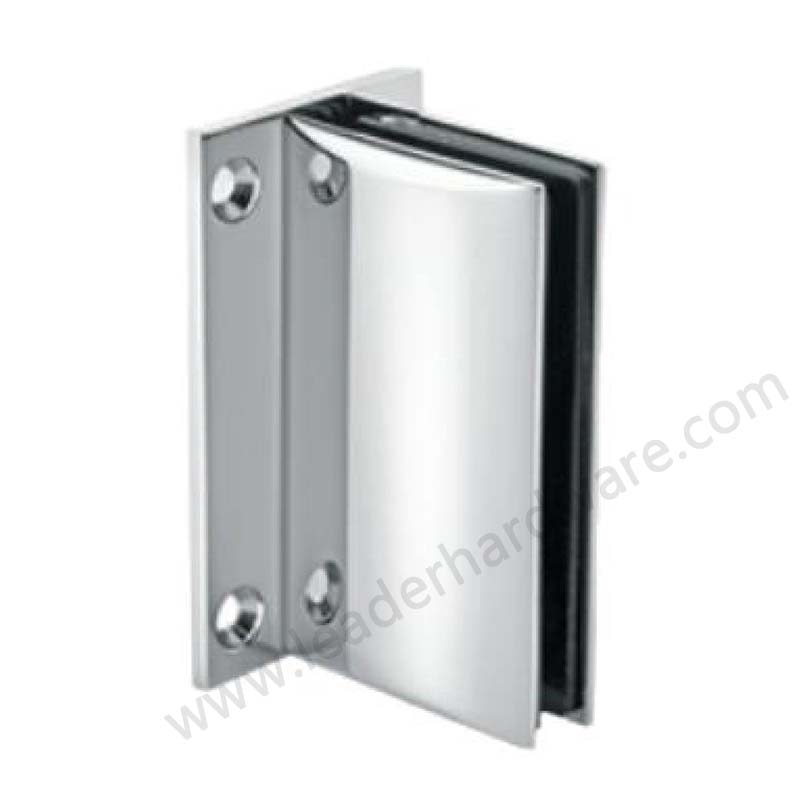

Wall-to-glass clamps anchor a glass panel directly to a wall surface. The GCB-202 series, for example, is a 90-degree wall-to-glass brass clamp designed specifically for this application. These are commonly used to secure fixed side panels in frameless shower enclosures.

Glass-to-Glass Clamps

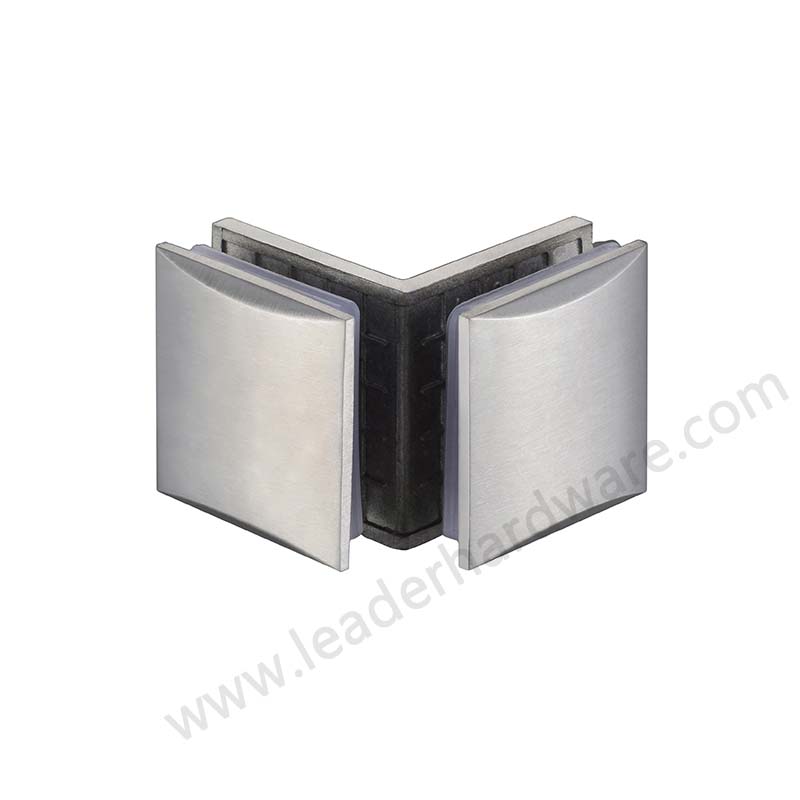

Glass-to-glass clamps connect two adjacent glass panels at a fixed angle — typically 90 or 135 degrees — without any wall contact. These are ideal for corner shower configurations.

Sleeve-Over Brackets

Sleeve-over brackets slide over the top or bottom edge of a glass panel and are fixed to the floor or ceiling. In addition to providing structural support, these brackets add a polished, decorative finish that complements premium bathroom aesthetics.

Shelf Clamps

Clamps in the GCB-100L and GCB-200L series are designed for glass shelving applications. These include heavy-duty floating glass shelf brackets and glass shelf support clamps, offering a clean, drill-free installation for bathroom or commercial glass shelves.

Featured Products from Leader Hardware

Leader Hardware manufactures a comprehensive range of brass glass clamps, organized by series to suit different installation requirements:

• GCB-101 – Brass Glass Clamp, standard profile

• GCB-101L – Brass Glass Clamp, extended L-bracket variant

• GCB-102A – Brass Glass Clamp, series A

• GCB-102B – Brass Glass Clamp, series B

• GCB-102C – Brass Glass Clamp, series C

• GCB-102L – Brass Glass Clamp, L variant for shelf use

• GCB-102SL – Brass Glass Clamp, sleeve-over design

• GCB-104L – Brass Glass Clamp, extended bracket

• GCB-105L – Shower glass clamp, L series

• GCB-106L – Brass Glass Clamp, heavy-duty L variant

• GCB-201 – Brass Glass Clamp, 200 series standard

• GCB-201L – Glass shelf clamp, L profile

• GCB-202 – 90-degree wall-to-glass clamp

• GCB-202L – Wall-to-glass clamp, L variant

• GCB-202SL – Sleeve-over glass clamp, 200 series

• GCB-204 – Brass Glass Clamp, 204 series

All products are available to inquire or add to a basket directly through the Leader Hardware website.

Why Choose Brass Shower Glass Clamps?

Brass is a preferred material for shower door clamps because it combines corrosion resistance with precise machinability. In wet bathroom environments, brass hardware maintains its structural integrity and finish over time, making it well-suited for long-term installations.

Leader Hardware brass clamps are available in multiple surface finishes — including chrome-plated (CP) and brushed nickel (BN) — so the hardware can be matched to the broader bathroom aesthetic, from contemporary minimalist to classic.

How to Choose the Right Glass Clamp for Your Project

Selecting the correct shower glass clamp depends on four key variables:

1. Glass thickness – Confirm whether the installation uses 8mm, 10mm, or 12mm glass before specifying a clamp.

2. Clamp orientation – Determine whether the clamp must connect glass to wall, glass to glass, or glass to floor/ceiling.

3. Load requirements – Larger or heavier glass panels require clamps rated for a higher load capacity. Heavy-duty L-series clamps are better suited for 12mm installations, while standard-series clamps work well for 8mm and 10mm panels.

4. Finish – Match the clamp finish (CP, BN, or other available options) to existing bathroom fittings such as shower handles, hinges, and towel rails.

Leader Hardware's shower door hardware range also includes hinges, sliding systems, pull handles, sealing strips, and support bars — allowing for a coordinated hardware specification across the full enclosure.

Frequently Asked Questions

Q: Can one shower glass clamp fit multiple glass thicknesses?
A: Many of Leader Hardware's clamp models are designed to accommodate a range of glass thicknesses — typically 8mm to 12mm — within a single fitting. The internal rubber or nylon pads adjust to grip the glass securely across this range. Always confirm the specific thickness compatibility listed on the individual product page before ordering.

Q: What is the difference between a glass clamp and a sleeve-over bracket?
A: A glass clamp grips the face or edge of a glass panel using a screw-tensioned body, while a sleeve-over bracket slides over the top or bottom edge of the glass without clamping pressure. Sleeve-over brackets are typically used at the base or top of a panel for positional support and decorative finish, whereas clamps provide the primary load-bearing hold.

Q: Are shower glass clamps suitable for frameless enclosures?
A: Yes. Shower glass clamps are specifically designed for frameless and semi-frameless shower enclosures, where the glass panel has no surrounding metal frame. The clamp replaces the structural role of the frame by anchoring the panel directly to the wall, floor, or an adjacent glass panel.

Q: Do glass clamps require drilling into the glass?
A: No. Shower glass clamps secure the panel without drilling into the glass itself. Fixings pass through the wall, post, or structural substrate — not the glass — making this method safe for use with tempered glass panels, which cannot be drilled after tempering.

Q: What other shower door hardware does Leader Hardware supply?
A: In addition to clamps and brackets, Leader Hardware supplies a complete range of shower door hardware, including hinges, sliding systems, door knobs, pull handles, towel bars, sealing strips, aluminum header bars, and support bars.
