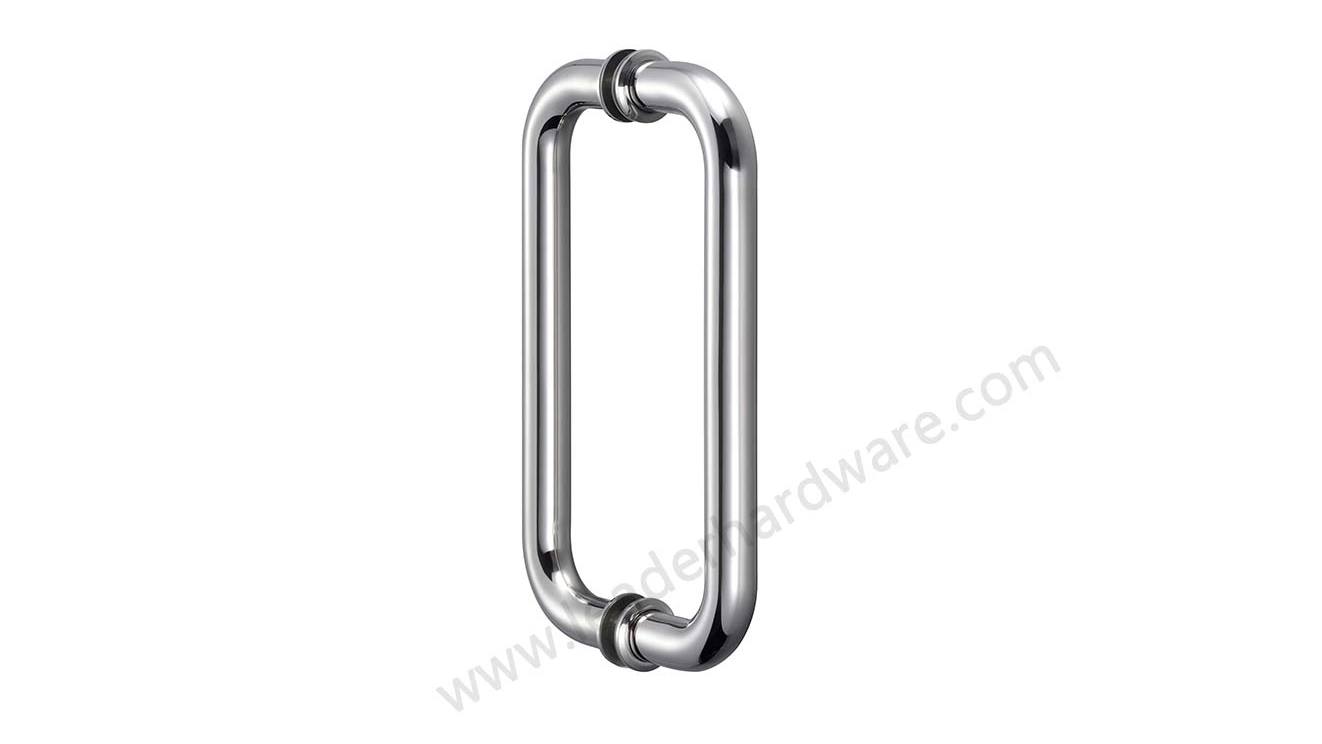

304 Stainless Steel Pull Handle PHS-202: Full Spec Guide

TL;DR:

The Leader Hardware PHS-202 is a 304 stainless steel pull handle for glass shower doors, compatible with 6mm to 12mm glass. It features a 3/4" (19mm) diameter round tube, laser-welded construction, up to 240 hours NSS corrosion resistance, and multiple finish options including Brushed Stainless Steel, Matte Black, and Satin Brass.

Glass shower door hardware has a way of making or breaking a bathroom finish. You can spec premium glass, precision hinges, and a clean frameless layout—but if the pull handle looks cheap, feels wobbly, or starts corroding after six months, the whole installation suffers. The PHS-202 from Leader Hardware is designed to prevent exactly that.

This article covers everything you need to know about the PHS-202 pull handle: its specifications, material quality, finish options, and how it compares to other handles in the Leader Hardware range.

What are the key specifications of the Leader Hardware PHS-202 pull handle?

The PHS-202 is a round-tube stainless steel pull handle built for glass shower doors and frameless shower enclosures. Here are its core specs:

The 19mm diameter tube is a standard size that works well across both residential bathrooms and commercial shower facilities. Multiple hole-to-hole distances mean the PHS-202 can accommodate a wide range of door panel sizes without requiring custom fabrication.

Why is ANSI 304 stainless steel the right material for a shower door pull handle?

Material selection matters more for bathroom hardware than almost any other application. Shower enclosures expose hardware to steam, cleaning chemicals, hard water deposits, and constant physical contact. Low-grade metals corrode quickly under these conditions.

ANSI 304 stainless steel—the same grade used in food processing equipment and medical instruments—offers a strong combination of mechanical strength and corrosion resistance. Leader Hardware takes this further with standardized surface treatment processes that push the PHS-202's anti-corrosion performance to up to 240 hours in a neutral salt spray (NSS) test. That figure sits well above typical industry benchmarks for bathroom pull handles.

The result is a handle that maintains its appearance and structural integrity over years of daily use in high-humidity environments.

How does laser welding improve the quality of the PHS-202 pull handle?

Traditional welding methods often leave rough joint areas that require extensive post-processing to smooth. Laser welding solves this problem at the source.

Leader Hardware uses laser welding on the PHS-202 to:

· Increase joint strength — the weld zone achieves higher tensile strength than conventional MIG or TIG welds

· Improve corrosion resistance — a cleaner, narrower weld bead reduces the surface area vulnerable to oxidation

· Simplify surface finishing — cleaner joints mean more consistent polishing and plating results, particularly for special finishes like Gun Metal and Satin Brass

This last point matters more than it might seem. For special finishes, visible color variation is a real quality risk. When the ΔE (color difference) value exceeds 2, the inconsistency becomes visible to the naked eye. Laser welding helps keep joints uniform, which directly supports tighter color control across production batches.

What finish options are available for the PHS-202, and how do you choose the right one?

The PHS-202 is available in five standard finishes, plus custom options:

· Brushed Stainless Steel — the most widely specified finish for residential and commercial showers; hides fingerprints well and pairs with most bathroom hardware collections

· Polished Stainless Steel — high-gloss appearance suited to contemporary minimalist designs

· Satin Brass — warm gold tone that suits transitional and traditional bathroom styles

· Gun Metal — dark charcoal finish for industrial or high-contrast bathroom aesthetics

· Matte Black — increasingly popular in modern bathrooms; strong visual contrast against clear glass

Choose Brushed Stainless Steel if finish consistency across a large project is the priority. Choose Matte Black or Gun Metal if the bathroom design features darker accent hardware. Satin Brass works best when the project already includes brass fixtures, faucets, or lighting.

How does the PHS-202 compare to the ladder-style PHS-201 pull handle?

Both the PHS-202 and PHS-201 use ANSI 304 stainless steel, share the same 19mm tube diameter, and achieve up to 240 hours NSS anti-corrosion performance. The difference lies in design:

· The PHS-202 is a single straight pull handle — compact, clean, and suited to smaller door panels or minimalist shower designs

· The PHS-201 uses a ladder-style configuration with two parallel tubes — better suited to wider doors, ADA-accessible designs, or applications where additional grip points are beneficial

For standard residential frameless showers, the PHS-202 is the simpler and more commonly specified option. For commercial projects or doors wider than 900mm, the PHS-201 offers added usability.

What glass thickness is the PHS-202 compatible with?

The PHS-202 is compatible with glass thicknesses from 6mm to 12mm. This covers the full range of glass typically used in residential and commercial frameless shower enclosures:

· 6mm glass — used in lighter shower screen applications

· 8mm glass — the most common thickness for residential frameless showers

· 10mm glass — heavier-duty residential and light commercial use

· 12mm glass — commercial shower enclosures and premium residential projects

This broad compatibility makes the PHS-202 a practical stock item for hardware distributors and contractors working across multiple project types.

Explore the Full Pull Handle and Towel Bar Range

The PHS-202 pull handle is part of Leader Hardware's complete pull handle and towel bar collection, which includes single-bar handles, ladder-style handles, miter joint designs, and combination pull handle and towel bar units. View the full range at leaderhardware.com/pull-handle-towel-bar.html.

For project inquiries or custom finish requests, contact the Leader Hardware team directly.

Frequently Asked Questions

What is the hole-to-hole distance for the PHS-202 pull handle?

The PHS-202 is available in multiple hole-to-hole distances, including 6" (152mm), 8" (203mm), and 12" (305mm). Additional sizes may be available on request.

Does the PHS-202 pull handle work on sliding shower doors?

The PHS-202 is primarily designed for swing (hinged) glass shower doors. For sliding door applications, Leader Hardware's combination pull handle and towel bar units, such as the TB-202, are typically a better fit.

Is the PHS-202 available in custom finishes?

Yes. In addition to the five standard finishes (Brushed Stainless Steel, Polished Stainless Steel, Satin Brass, Gun Metal, and Matte Black), custom finishes can be discussed directly with the Leader Hardware team.

What corrosion resistance standard does the PHS-202 meet?

The PHS-202 achieves up to 240 hours of anti-corrosion performance in a neutral salt spray (NSS) test, which exceeds typical industry standards for shower door hardware.

Who manufactures the PHS-202 pull handle?

The PHS-202 is manufactured by Jiangmen Leader Hardware Technology Co., Ltd., based in Jiangmen City, Guangdong, China. Leader Hardware specializes in glass shower door hardware and architectural hardware for residential and commercial projects.
